尊敬的客户：
感谢您在2013年10月16日-18日期间参观我司（北京ILOPE展会）展位：在本次展会期间, 北京镭志威(Laserwave)光电携多款新品，成功亮相ILOPE展会并受到广泛关注。 此次展会， 镭志威（Laserwave）继续拓展自己的产品线，新推出了：1、针对科研应用的各波长高稳定性（稳定性＜1%）激光器；2、干涉检测(单纵模绿光、红光激光器）；3、医疗行业应用(高功率光纤耦合输出绿光激光器)；4、道路,桥梁等无接触式检测(808nm线光斑激光器)；5、PIV等行业应用(束腰可调,线长可调绿光激光器)；6、加工行业脉冲1064nm打标激光器；7、生物行业（593nm、405nm、488nm、515nm等等波长激光器）。
产品详细信息欢迎您登陆镭志威网站（www.laser-wave.com）了解详情。

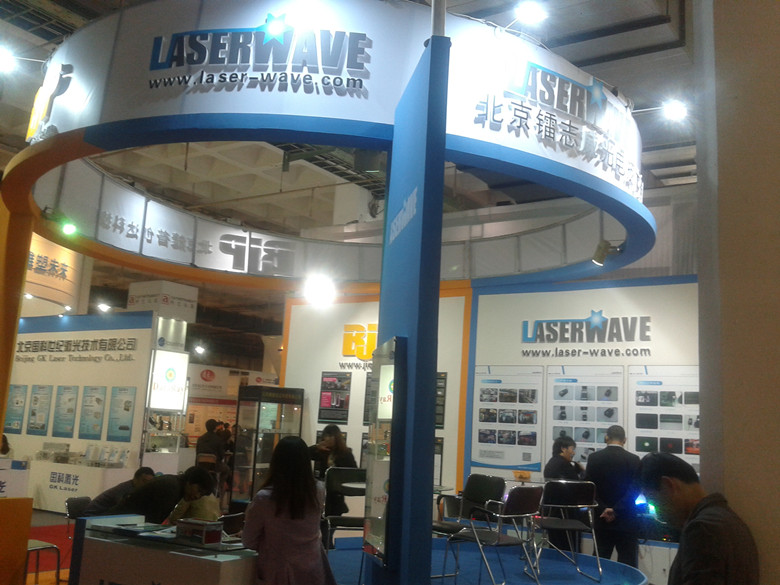

LaserWave 展位图

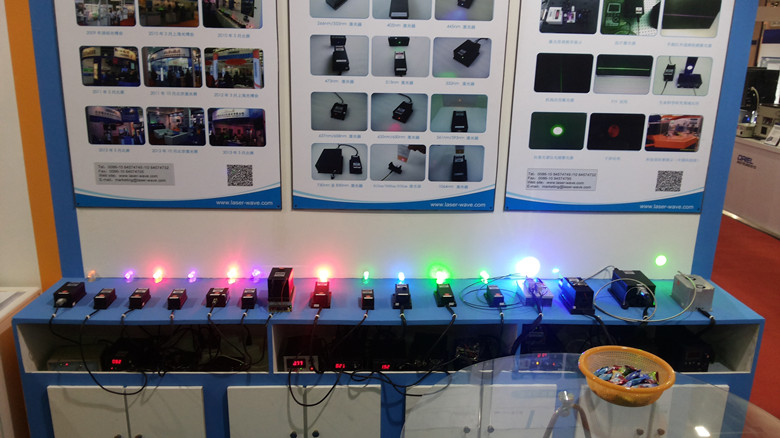

LaserWave 展品
展会主要新品介绍：

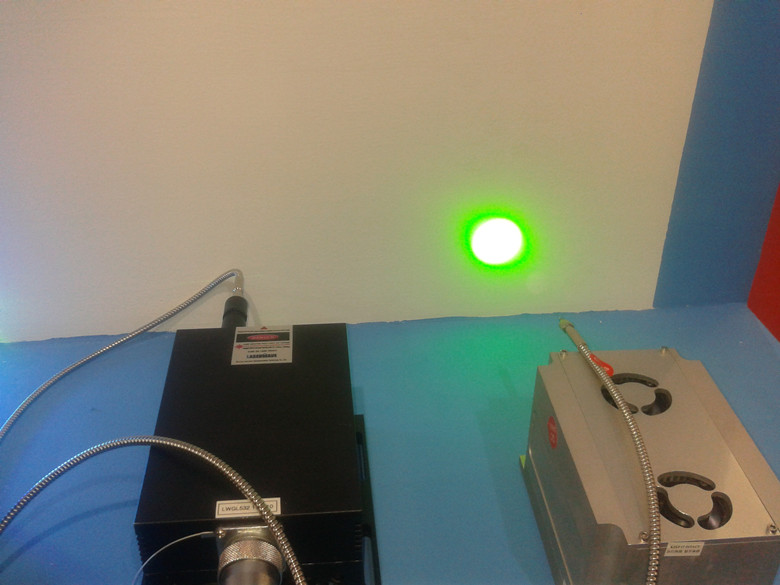

医疗应用绿光光纤耦合输出激光器
Specification技术参数
Wavelength (nm) | 532 | ||
Output power (mW) | 8000 | ||
Power adjust reange | 0-8000mW | ||
Transverse mode | TEM00 | ||
Operating mode | CW | ||
Power stability (rms, over 4 hours) | Min | Typical | Max |
2% | 3% | 5% | |
Warm-up time (mins) | <5 | ||
M2 factor | <1.2 | ||
N.A of fiber | 0.22 | ||
Fiber center diameter(um) | 400(Other fiber can choose) | ||
Fiber length(m) | 2 | ||
Spectral line width (nm) | <0.1 | ||
Point stability after warm-up (mrad) | <0.05 | ||
Operating temperature (℃) | 10-35 | ||
Expected lifetime (hours) | 10000 | ||
Dimensions of laser head (mm) | 180(L)*146(W)*98(H) | ||
LAB PSU | 241.5(L)*144(W)*139(H) | ||
Net weight (laser head & powers) (kg) | 6.5 | ||
Warranty time | 1 year | ||
加工行业1064nm脉冲激光器（激光打标）
Specifications技术参数
Operating mode | Pluse | |
Wavelength | 1064nm | |
Average Power | 1W-2W | |
Peak power | >15kW | |
Pulse width (FWHM) | <10ns | |
Repetition rate | <30kHz | |
Pulse energy | 60μJ -120μJ | |
Spatial mode | M2<1.2, -TEM00 | |
Ave Power stability (rms, over 4 hours) | Typical | Max |
<3% | <5% | |
Warm-up time (mins) | <15 | |
M2 factor | <1.2 | |
Beam divergence, full angle (mrad) | <2.0 | |
Beam diameter (mm) | <3.0 | |
Beam height from base (mm) | 29 | |
Spectral line width (nm) | <2 | |
Polarization ratio | >50:1 | |
Noise of amplitude (rms) | ~10% | |
Point stability after warm-up (mrad) | <0.05 | |
Operating temperature (℃) | 10-35 | |
Expected lifetime (hours) | 10000 | |
Dimensions of laser head (mm) | 168(L)*110(W)*99.8(H) | |
Net weight (laser head & powers) (kg) | Lab, 3.5kg | |
Warranty time | 1 year | |
